Scaling web apps using read replicas

How we scaled Alt.xyz to handle growing read requests

At Alt.xyz we built a marketplace for selling investment grade cards. Over time, our application grew from a scale of tens of thousands to millions of daily requests.

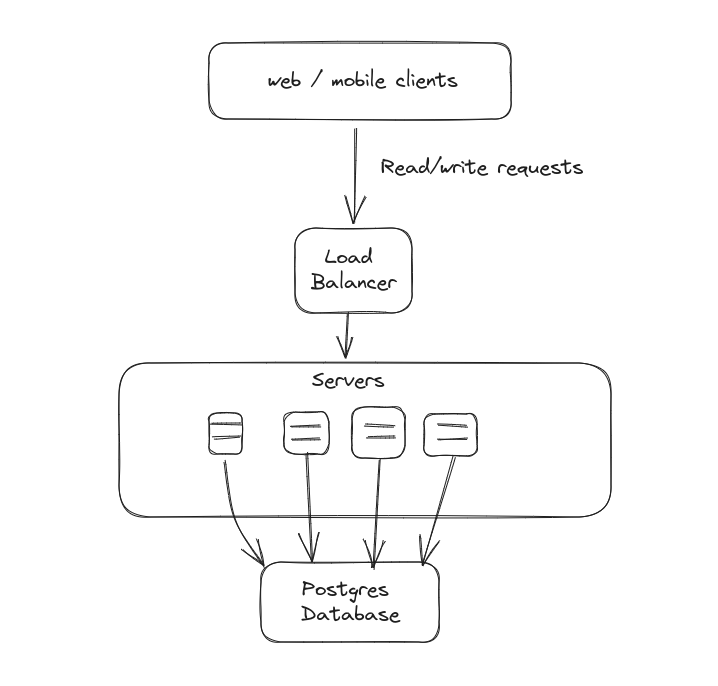

We started a single postgres instance that all our clients were reading / writing to / from. Below is a diagram of our system at the time. One can see there exists contention with the single database instance serving all traffic. postgres-diagram

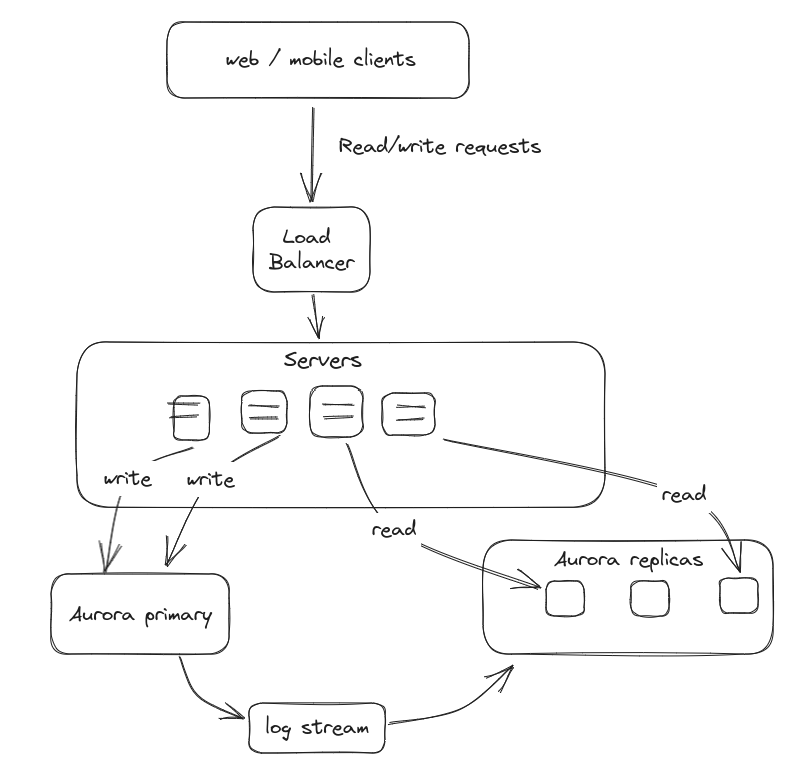

In order to handle the scale, we switched from postgres to aurora database instances and horizontally scaled using read replicas. 99% of the daily requests were read requests. We opted to send all our read data to the read replicas and only writes to the primary database instance. This post describes how we implemented such a change in a GraphQL environment. Below is a diagram of the final system to give an idea of what we're working towards in this post. aurora-diagram

Postgres read replicas

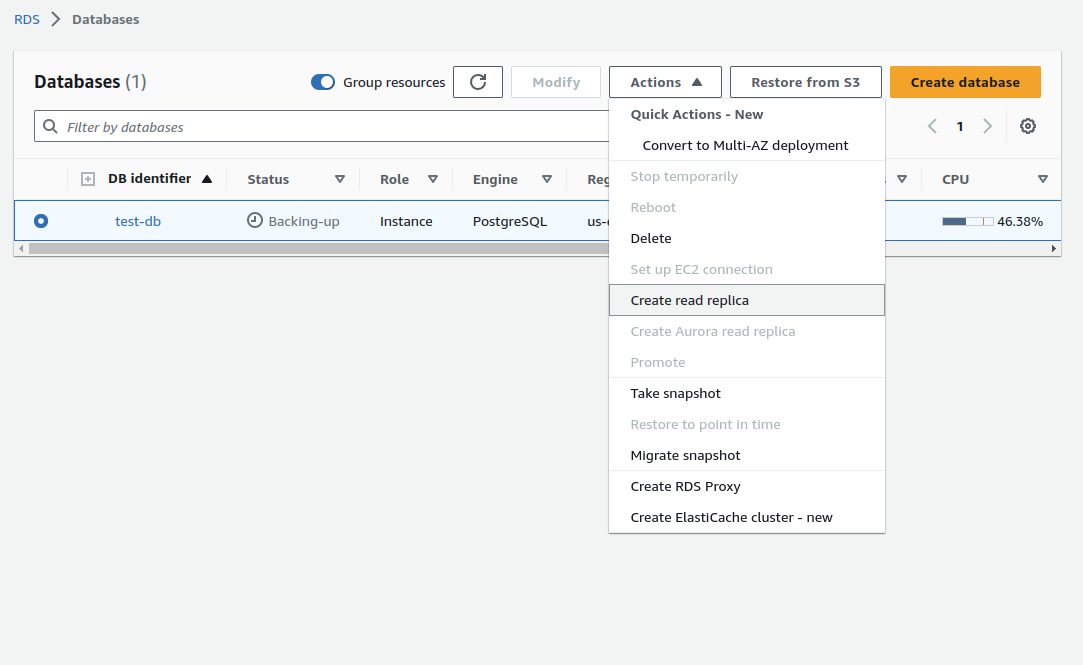

We started with postgres as our database. Postgres offers read replicas and adding a read instance is relatively straight forward in the AWS console (shown below). In a production environment, I recommend to manage these resources through terraform but for the purpose of this post working directly through the aws rds console is sufficient:

aws

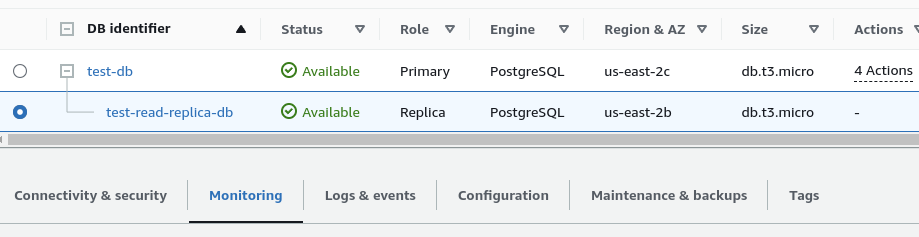

Prior to implementing read replica usage developer's should understand how long data takes to be written to the read replica. In our case, it would take several seconds for the read replica. This information is available in the monitoring section of a read replica.

aws-monitoring

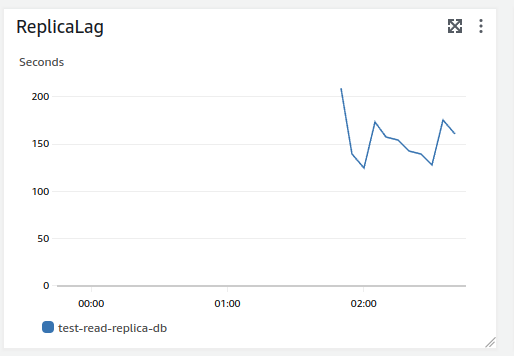

The monitor ReplicaLag is the one we need to gain insights: aws-replication-monitor

Once insight to replication lag is gained, developers will need to understand whether the product they are building has tolerance for showing stale data and for how long. There are times the replication lag can spike if the rds instance is experiencing high cpu usage. This can occur due to long-running queries or database migrations on large tables.

Migration to Aurora

Coming soon

Server: biforking read/write

Coming soon

Frontend: biforking read/write

Coming soon
